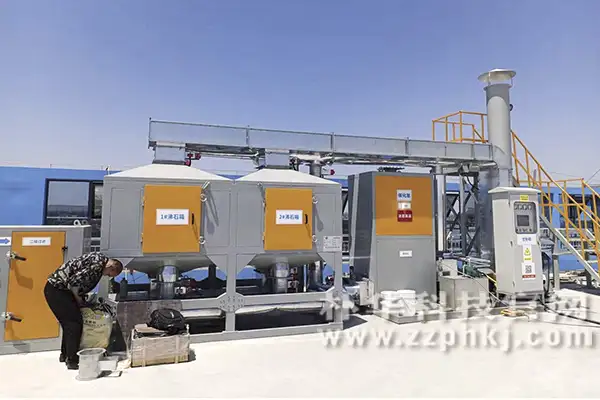

Zeolite Fixed Bed+Catalytic Combustion Equipment (RCO)

1、 Process Principle of Zeolite Fixed Bed+Catalytic Combustion Equipment

Firstly, use zeolite module to adsorb and compress volatile organic waste gas (VOCs) to improve the concentration;

Desorption of high-concentration waste gas molecules and sending to catalytic oxidation furnace for flameless combustion, decomposition into CO2 and H2O, so as to purify organic waste gas.

2、 Process Flow of Zeolite Fixed Bed+Catalytic Combustion Equipment

The volatile organic waste gas (VOCs) with large air volume and low concentration is filtered by the filter under the action of the induced draft fan, and then enters the zeolite fixed bed adsorption module for adsorption and concentration. The clean air after being absorbed and purified by the zeolite is discharged into the atmosphere through the chimney.

With the increase of time, the adsorption capacity of zeolite approaches saturation. The electronic control system controls the catalytic oxidation furnace to start heating and preheat the noble metal catalyst. The heated high temperature gas is cooled by the heat exchanger and then adjusted to 180~220 ℃ by air mixing to heat and desorb the saturated zeolite module. The desorbed high concentration organic waste gas is preheated by the heat exchanger and sent to the catalytic oxidation furnace for decomposition.

The organic waste gas heated to 250~350 ℃ in the catalytic oxidation furnace will burn without flame under the action of precious metal catalyst. The organic waste gas will be oxidized and decomposed into CO2 and H2O to achieve the purpose of purification. The purified air will be discharged to the high altitude through the chimney.

3、 Performance characteristics of zeolite fixed bed+catalytic combustion equipment

High purification efficiency, above 95%;

Selective adsorption, waterproof, high temperature resistance, uniform adsorption and high desorption efficiency;

High-temperature desorption and high temperature decomposition for some easy-to-be polymers;

High safety, no solvent residue after desorption, and the material itself is an inorganic material to reduce the fire hazard;

Specially shaped honeycomb zeolite molecular sieve is selected as the adsorption material, with long adsorbent life and small adsorption system resistance;

Multiple organic pollutants can be removed at the same time, with simple process flow, compact equipment, stable operation and other advantages;

It has the advantage of low operation cost, and its heat recovery efficiency can generally reach more than 95%;

PLC control cabinet module intelligent control, multi-point touch control, remote control, user-friendly operation interface;

No wastewater is produced in the whole process, and no secondary pollution such as NOX is produced in the purification process.

4、 Application scope of zeolite fixed bed+catalytic combustion equipment

It is applicable to the volatile organic waste gas of normal temperature, large air volume, medium and low concentration, including some organic solvents such as benzene, ketones, aldehydes, ethers, alkanes and their mixtures;

Exhaust treatment of impurities such as nitrogen, sulfur and chlorine in the exhaust gas;

Exhaust treatment of various painting workshops, printing workshops, aluminum profile production, coating processing, electronic product manufacturing, semiconductor integrated circuit, liquid crystal display (LCD) manufacturing, lithium ion battery manufacturing, resin, rubber, tire and other product production processes.
