Integrated sewage treatment equipment
Wastewater Treatment Equipment
Integrated sewage treatment equipment
The Activated Carbon + RCO system combines activated carbon adsorption with catalytic combustion technology to efficiently treat volatile organic compounds (VOCs) from various industrial processes. This system offers high purification efficiency, low energy consumption, and stable operation, making it ideal for industries such as painting, printing, chemical, and pharmaceutical.
Key Features
- High adsorption efficiency with advanced activated carbon technology
- Low energy consumption through catalytic combustion process
- Modular design for easy installation and maintenance
- Intelligent control system with automatic operation
- Wide application range for different VOCs concentrations
- Compliance with international environmental standards
1、 Introduction to Integrated Wastewater Treatment Equipment
Integrated sewage treatment equipment scientifically and reasonably combines various links in traditional sewage treatment, such as anoxic, anaerobic, aerobic, precipitation, filtration and dosing, with compact equipment design and space saving. It is widely used in the new generation of sewage treatment equipment. The integrated sewage treatment equipment is used to treat the sewage within the scope of application. According to the Owner's requirements, different configurations of the effluent can meet the requirements of Class III water, Class II, Class I B, Class I A, Class V surface water and Class IV surface water in the national sewage discharge standard.
The MBR membrane treatment process is adopted by the integrated sewage treatment equipment of Parkway Technology, which has the advantages of high treatment efficiency, good effluent quality, small floor area, convenient operation and management, etc. The equipment consists of pretreatment system, anoxic tank, aerobic tank, MBR membrane tank and equipment room. The equipment control system consists of IPC, data collector and 4G network, which can realize the on-site data acquisition, analysis and remote online control functions of the equipment.
2、 Process flow of integrated sewage treatment equipment

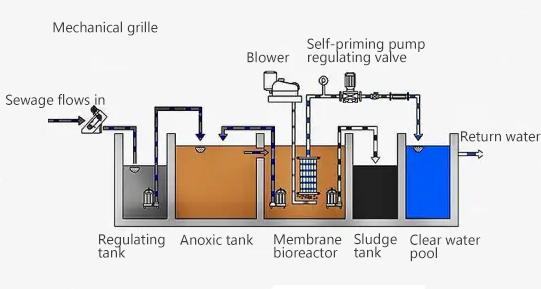

The sewage, after being intercepted by the grid to remove large particles of suspended solids in the water, enters the regulating tank, and is pumped to the anoxic tank for hydrolysis reaction after homogenization and equalization in the regulating tank, so as to improve the biodegradability of the sewage. The effluent enters the aerobic tank, where it is oxygenated by the air blower to decompose the COD in the water under the action of aerobic microorganism. At the same time, the ammonia nitrogen is consumed as nitrate nitrogen. Finally, it enters the MBR membrane biological reaction tank for solid-liquid separation, so as to reduce the content of suspended solids in the water. The nitrate nitrogen flows back to the anoxic tank together with the nitrifying liquid for denitrification biological denitrification, so as to reduce the total nitrogen content in the water. At the same time, biological dephosphorization is used, supplemented by chemical dephosphorization to ensure that the phosphorus content in the effluent meets the standard. It can reach Level A standard in the pollutant discharge standard of urban sewage treatment plant.
Click the video to view the wastewater treatment process
3、 Benefits of integrated sewage treatment equipment
Flexible installation mode: all-buried, semi-buried, aboveground and other different installation modes can be selected;
Convenient operation and maintenance: PLC control is fully automatic operation, only temporary patrol inspection is required;
Structure optimization: summarize and optimize through long-term practical experience, with reasonable design and thorough consideration of details;
Less investment: lower investment cost than conventional steel concrete structure tank;
Short construction period: less infrastructure works and short construction period.
4、 Scope of application of integrated sewage treatment equipment
Pak Hua technology integration sewage treatment equipment is widely used in residential communities, villages, towns, office buildings, shopping malls, hotels, restaurants, nursing homes, authorities, schools, troops, hospitals, highways, railways, factories, mines, scenic spots and other domestic sewage and similar abattoir, aquatic products processing, food and other small and medium-sized industrial organic wastewater treatment and recycling. The quality of the sewage treated by the equipment meets the Grade B standard of the national comprehensive sewage treatment discharge standard, the pollutant concentration discharge standard of urban sewage treatment plant GB18918-2002, and the sewage discharge standard of medical institutions GB166-2005.
5、 Equipment Selection Table
Applications
Automotive painting workshops
Ideal solution for automotive painting workshops processes requiring efficient VOCs treatment and air pollution control.
Chemical and pharmaceutical production
Ideal solution for chemical and pharmaceutical production processes requiring efficient VOCs treatment and air pollution control.
Printing and packaging industry
Ideal solution for printing and packaging industry processes requiring efficient VOCs treatment and air pollution control.
Electronics manufacturing
Ideal solution for electronics manufacturing processes requiring efficient VOCs treatment and air pollution control.
Food processing and packaging
Ideal solution for food processing and packaging processes requiring efficient VOCs treatment and air pollution control.
Plastic and rubber industry
Ideal solution for plastic and rubber industry processes requiring efficient VOCs treatment and air pollution control.
