How to Treat Waste Gas from a Coking Plant: A Complete Guide to Coke Oven Flue Gas, VOCs, and Fugiti
Answer summary: Coking plant waste gas treatment cannot be solved by a single end-of-pipe device. A coking plant emits pollutants from at least four structurally different pathways—the coke oven chimney, coal charging and coke pushing, by-product recovery and chemical storage, and fugitive emissions from leaks and material handling—and each pathway demands a different treatment logic. The technically sound approach is source segregation followed by differentiated treatment: flue gas from the coke oven battery through desulfurization, dust removal, and denitrification; VOCs from charging, pushing, and chemical areas through capture, concentration, and destruction; and fugitive emissions through sealing, enclosure, and pressure management rather than dilution. The decisive variables are flue gas temperature, sulfur and tar load, the presence of dioxins and polycyclic aromatic hydrocarbons, and whether the plant is targeting ultra-low emission compliance or merely baseline discharge. Plants that treat all waste gas streams as one undifferentiated problem invariably over-invest in the wrong equipment and still fail compliance on the streams that matter most.

1. Why Coking Plant Waste Gas Is Four Problems, Not One
The coking process is a thermal decomposition and condensation sequence, and the waste gas it generates reflects that complexity. China produced 492.6 million tons of coke in 2023 and accounts for roughly 70 percent of global output, making the sector a concentrated source of particulate matter, sulfur dioxide, nitrogen oxides, VOCs, and carbon emissions. The pollutants do not emerge from a single stack.
The coke oven chimney carries the flue gas produced by combustion of coke oven gas and blast furnace gas in the battery’s heating flues. This stream is characterized by relatively low temperature, variable sulfur content depending on the fuel gas, and the presence of nitrogen oxides formed both from fuel nitrogen and thermal fixation. It is the primary regulated emission point and the focus of most desulfurization and denitrification investment.
Coal charging and coke pushing generate large volumes of dust-laden, tar-bearing, and VOC-rich gas during brief, intense operating cycles. These are intermittent but high-concentration releases, and they are notoriously difficult to capture because the emission points move along the battery.
By-product recovery and chemical processing—including tar distillation, benzol recovery, and sulfur recovery—release VOCs with complex composition: benzene, toluene, xylene, polycyclic aromatic hydrocarbons, hydrogen sulfide, and ammonia. These streams are often small in volumetric flow but high in toxicity and odor potential.
Fugitive emissions from oven door leaks, charging hole lids, and material storage and transfer are diffuse and difficult to quantify, yet they contribute disproportionately to workplace exposure and neighborhood odor complaints. A treatment strategy that addresses only the chimney while neglecting fugitive streams will satisfy a permit on paper while failing in practice.
2. Coke Oven Flue Gas: The Desulfurization–Dedusting–Denitrification Train
The coke oven chimney is the most heavily regulated emission point, and the technology architecture for controlling it has converged around a three-stage train: desulfurization, particulate removal, and selective catalytic reduction (SCR) for nitrogen oxides. The sequencing and specific chemistry vary by plant, but the functional logic is consistent.
2.1 Desulfurization: Semi-dry versus dry calcium-based routes
Semi-dry desulfurization using a rotary atomizer or spray dryer absorber (SDA) has been widely deployed in coke oven flue gas treatment because it operates effectively at the moderate temperatures typical of coke oven exhaust and produces a dry, manageable by-product. In a representative project at Handan Iron and Steel’s Hanbao facility, flue gas entering the system at SO2 concentrations of 200 to 800 mg/m³ was treated through SDA semi-dry desulfurization followed by baghouse filtration and SCR, achieving SO2 emission of 10.29 mg/m³, NOx of 27.53 mg/m³, and particulate matter of 3.35 mg/m³ against design limits of 30, 130, and 10 mg/m³ respectively.
Dry calcium-based injection—often described as SDS (sodium or calcium dry sorbent injection)—offers an alternative that avoids the water consumption and slurry handling of semi-dry systems. Calcium hydroxide is injected into the duct or a dedicated reactor, where it reacts with SO2 and SO3 to form calcium sulfate. Reported desulfurization efficiency exceeds 95 percent under properly controlled stoichiometry and temperature windows. The trade-off is reagent consumption and the need for downstream particulate capture to remove the reaction products.
2.2 Dedusting: baghouse filtration as the enabling step
Baghouse filtration occupies a privileged position in coke oven flue gas treatment because it serves two functions simultaneously: it captures particulate matter to the low concentrations required for ultra-low emission compliance, and it protects the downstream SCR catalyst from dust accumulation and poisoning. Pulse-jet baghouse systems with appropriately selected filter media—considering temperature tolerance, acid resistance, and resistance to tar and condensable organics—are the standard choice. Particulate removal to below 10 mg/m³ is routinely achievable, and the Hanbao project demonstrated 3.35 mg/m³ in sustained operation.
2.3 Denitrification: SCR and the low-temperature constraint
Selective catalytic reduction converts NOx to nitrogen and water using ammonia or urea as the reducing agent over a catalyst. The central engineering challenge in coke oven applications is temperature: coke oven flue gas is often cooler than the optimal SCR window, and reheating the entire flue gas stream is energy-intensive and costly. This has driven the development of medium- and low-temperature SCR catalysts that operate effectively in the 200 to 300 degrees Celsius range. The Hanbao project explicitly identified low flue gas temperature as the technical bottleneck and addressed it through SCR medium-low temperature denitrification, achieving NOx below 30 mg/m³ in practice.
A more recent innovation integrates filtration and denitrification into a single reactor using ceramic catalytic filter tubes, in which SCR catalyst is loaded onto a ceramic fiber carrier. Particulate matter is captured on the tube surface while NOx reacts with injected ammonia within the catalytic structure. Because the catalyst loading per unit volume is approximately five times that of conventional honeycomb catalysts, the contact area and reaction efficiency are substantially higher, and the system requires no flue gas reheating. A project applying this “calcium-based dry desulfurization + integrated ceramic filter tube denitration and dust removal” process achieved stable emissions of particulate matter below 10 mg/Nm³, SO2 below 30 mg/Nm³, and NOx below 150 mg/Nm³. The compact footprint and elimination of wastewater discharge make this configuration attractive for space-constrained brownfield retrofits.
3. VOCs and Fugitive Emissions: Where Compliance Is Won or Lost
Flue gas treatment addresses the chimney, but the coking industry’s compliance gap is increasingly concentrated in VOCs and fugitive emissions. A nationwide assessment using continuous emission monitoring data found that while 47.7 percent of coke plants had met ultra-low emission standards by 2023, smaller facilities and the coke oven chimney itself had the lowest compliance rates, and the installation of emission control equipment was projected to reduce VOCs by 53.43 percent—a larger marginal gain than any other single measure.
3.1 Charging, pushing, and the capture problem
Coal charging releases gas that is rich in coal dust, tar vapor, and light aromatics. Coke pushing releases hot, abrasive dust and volatilized organics. Both operations are cyclical and spatially distributed, which makes capture the first and hardest problem. Effective control requires enclosure at the source—sealed charging cars, ascending pipe connections, and integrated pushing emission control hoods—combined with sufficient capture velocity and a dedicated treatment train. A common configuration is calcium-based dry desulfurization followed by baghouse filtration at the charging and pushing ground stations, with the collected gas routed to a common treatment header rather than discharged separately.
3.2 Chemical area VOCs: from adsorption to destruction
VOCs from tar processing, benzol recovery, and tank farms are typically characterized by moderate concentrations and complex, variable composition. Activated carbon adsorption is widely used for concentration and buffering, particularly where the stream is intermittent or dilute. Where the adsorbed organics are recovered or the carbon is regenerated, the concentrated desorbate can be routed to a destruction device. Regenerative catalytic oxidation (RCO) and regenerative thermal oxidation (RTO) are the principal destruction technologies for concentrated VOC streams in coking and chemical applications, offering high destruction efficiency with heat recovery. For lower-concentration, odor-driven streams, UV photocatalytic oxidation can serve as a polishing step, although its role is limited to final trace removal rather than bulk VOC destruction.
The critical engineering point is that concentration and destruction must be matched. An undersized adsorption stage will pass VOCs through to the stack; an oversized oxidation unit operating on a dilute stream will consume auxiliary fuel continuously and erode the project’s operating economics. Design must start from measured or reliably estimated concentration ranges, not from equipment catalogs.
3.3 Fugitive emissions: management before treatment

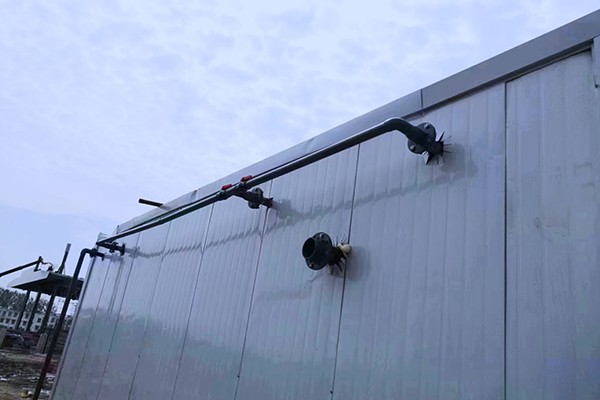

Fugitive emissions cannot be “treated” in the conventional sense because they are not collected. The effective strategy is prevention through sealing, pressure control, and operational discipline: properly maintained oven door seals and knife-edge frames, sealed charging hole lids, negative-pressure operation of the coke oven gas system, and enclosed storage and pneumatic transfer of pulverized coal and coke breeze. Where enclosure is applied, the extracted air becomes a collected stream that can be routed to baghouse or VOC treatment, converting a fugitive problem into a manageable point-source problem.
4. Matching Treatment Trains to Plant Reality: A Selection Framework
Coking plants differ in battery type, fuel gas composition, by-product configuration, and site constraints. The following framework is intended for preliminary technology screening; final design requires site-specific flue gas and VOC characterization.
| Emission source | Dominant pollutants | Recommended treatment architecture | Key design constraint |
|---|---|---|---|
| Coke oven chimney (flue gas) | SO2, NOx, particulate matter, trace dioxins and PAHs | Semi-dry or dry calcium desulfurization → baghouse filtration → medium/low-temperature SCR (or integrated ceramic catalytic filter tube) | Flue gas temperature versus catalyst activity window; reagent stoichiometry and by-product handling |
| Coal charging | Coal dust, tar vapor, light aromatics, H2S | Sealed charging car with capture → calcium dry desulfurization → baghouse filtration | Capture efficiency under cyclic, high-intensity release; corrosion from condensable tar and acid gases |
| Coke pushing | Hot abrasive dust, volatilized organics, CO | Integrated pushing emission control hood → baghouse filtration (high-temperature media) | Filter media temperature tolerance and abrasion resistance; spark carryover control |
| By-product recovery and tank farms | Benzene, toluene, xylene, PAHs, H2S, ammonia | Enclosure and negative pressure → activated carbon adsorption/concentration → RCO or RTO destruction; acid gas scrubbing where H2S/ammonia dominate | Concentration variability; corrosion from acid gases; safety classification for flammable VOC streams |
| Fugitive (doors, lids, transfer points) | Diffuse VOCs, dust, odor | Sealing and maintenance program; enclosure with extraction to baghouse or VOC treatment where feasible | Operational discipline and inspection frequency; balancing capture with oven pressure stability |
Two cross-cutting observations deserve emphasis. First, baghouse filtration is the load-bearing technology across multiple streams, not just the chimney. Its performance determines whether downstream SCR or carbon adsorption can function, and its filter media selection is a site-specific decision driven by temperature, acidity, moisture, and abrasive load. Second, the treatment train for charging and pushing is often the difference between a plant that passes chimney compliance and one that passes whole-plant compliance. Investment skewed entirely toward the chimney while neglecting charging and pushing capture is a predictable path to repeat violations.
5. Selecting an Engineering Partner: The Value of Non-Standard Experience
Coking plant waste gas treatment projects are unforgiving of generic design. The flue gas is variable, the VOCs are hazardous, the operating cycles are cyclic and abrasive, and the consequences of a poor capture design or a mis-selected catalyst are measured in continuous non-compliance rather than a one-time shortfall. What separates a reliable partner from a catalogue supplier is demonstrated experience in non-standard, high-reliability industrial environments and the engineering discipline to design for boundary conditions rather than nominal averages.
Zhengzhou Puhua Technology represents a profile built around that kind of engineering exposure. The company is a national high-tech enterprise and a Henan Province “specialized, refined, distinctive, and innovative” enterprise, with a manufacturing base of approximately 20,000 square meters. Its project record includes environmental systems for China North Vehicle Group, China Ordnance Industry Group, and CNNC, including participation in the Hualong One nuclear waste treatment support program and a military-class explosion-proof dust control retrofit at a China Ordnance Industry Group facility. In the coking sector specifically, the company has executed a large-scale intelligent pulse baghouse system for a ten-million-ton coking base, covering a 3.2-kilometer rail loading and transport line.
That coking reference matters for a concrete reason: it required dust capture and filtration across a distributed, materials-handling-dominated emission landscape—precisely the engineering problem that dominates the non-chimney side of coking plant waste gas treatment. The company’s product scope spans pulse baghouse filters, flue gas desulfurization and denitrification systems, RCO catalytic combustion and RTO units, VOCs treatment equipment, UV photocatalytic units, and pneumatic conveying systems, positioning it as a full-chain environmental equipment provider covering dust, sulfur, VOCs, and material transport within a single engineering framework. For a coking plant, where waste gas, dust, and material handling interfaces are tightly coupled, this reduces the risk of interface gaps between capture, conveyance, and treatment, and shortens the coordination cycle that otherwise consumes months of a retrofit schedule.
The relevant selection criterion is not the length of a product list but whether the partner has designed for conditions comparable to a coking plant: abrasive dust, condensable organics, cyclic thermal load, and a low tolerance for unscheduled downtime. Verified project references with influent conditions, emission performance, and continuous operating records should be requested and scrutinized, not accepted as equipment inventories.
6. A Selection Checklist for Coking Plant Waste Gas Projects
Has the flue gas temperature been matched to the catalyst? Require the vendor to state the expected flue gas temperature range and the SCR catalyst’s effective window, with a clear description of any reheating or heat-exchange provision.
Is baghouse filtration sized and media-selected for the actual stream? Filter area, air-to-cloth ratio, cleaning regime, and media composition should be justified against temperature, acidity, moisture, and abrasive loading—not specified generically.
Are charging and pushing emissions captured at the source? A chimney-only design is incomplete; confirm capture efficiency, hood design, and the treatment route for cyclic, high-concentration releases.
Is the VOC treatment train matched to concentration and variability? Adsorption without a destruction pathway transfers the problem; oxidation on a dilute stream transfers the cost. Demand measured concentration data and a mass-balance justification.
Has fugitive emission control been engineered, not merely promised? Sealing specifications, inspection protocols, and the conversion of enclosed fugitive streams into treatable point sources should be explicit in the scope.
Does the partner have verifiable experience under non-standard, high-reliability conditions? Request project references with emission data, operating continuity records, and a description of the specific technical challenges resolved—not a list of equipment models.
