What is the Air-to-Cloth Ratio? Its Critical Impact on Dust Collector Performance

In industrial settings, effective dust collection is crucial for maintaining air quality, protecting equipment, and ensuring regulatory compliance. Among the various technical parameters that influence dust collector efficiency, the air-to-cloth ratio stands out as a fundamental design factor. This article explains what the air-to-cloth ratio is, how it works, and why it plays a vital role in determining the performance of dust collectors, with a focus on bag filter systems. By understanding this concept, plant managers and engineers can make informed decisions to optimize their dust control strategies.

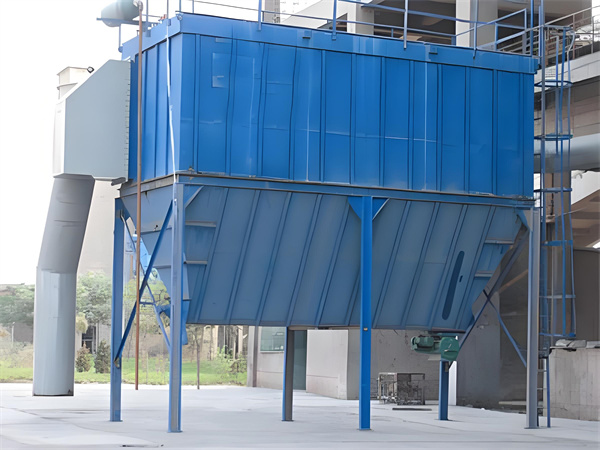

What is the Air-to-Cloth Ratio?

The air-to-cloth ratio, often referred to as the filtration velocity or A/C ratio, is a key metric in dust collection system design. It is defined as the ratio of the volumetric airflow rate through a dust collector to the total surface area of the filter media. Essentially, it indicates how much air is being filtered per unit area of fabric, typically measured in units like cubic feet per minute per square foot (ft³/min/ft²) or cubic meters per hour per square meter (m³/h/m²). A simple formula represents it:

Air-to-Cloth Ratio = Volumetric Airflow Rate / Filter Media Area

This ratio helps in sizing dust collectors appropriately. For instance, a lower air-to-cloth ratio means more filter media is available for a given airflow, which can enhance filtration and reduce operational strain. In contrast, a higher ratio may lead to challenges such as increased pressure drop and shorter filter life. Understanding this balance is essential for designing efficient systems.

How the Air-to-Cloth Ratio Affects Dust Collector Performance

The air-to-cloth ratio directly impacts several critical aspects of dust collector operation. Its influence extends beyond mere numbers, affecting overall system reliability and cost. Below are the primary ways it shapes performance:

• Filtration Efficiency: A lower air-to-cloth ratio generally results in higher efficiency because dust particles have more time to be captured on the filter media. This is particularly important for fine particles or high-concentration dust streams, where inadequate ratios can lead to emissions exceeding limits.

• Pressure Drop and Energy Consumption: The ratio correlates with pressure drop across the filter. Higher ratios often cause a rapid increase in pressure drop, requiring more powerful fans and higher energy usage. Over time, this can escalate operational costs and strain system components.

• Filter Bag Lifespan: Optimal ratios contribute to longer filter life by minimizing excessive dust loading and frequent cleaning cycles. When the ratio is too high, bags may wear out quickly due to abrasion or clogging, leading to frequent replacements and downtime.

• System Sizing and Cost: Designers use the air-to-cloth ratio to balance initial capital costs (e.g., filter media area) with long-term expenses. A well-chosen ratio ensures the dust collector is neither oversized nor undersized, promoting cost-effectiveness.

To illustrate, consider the following table showing typical effects based on ratio ranges:

These impacts highlight why selecting the right air-to-cloth ratio is not a one-size-fits-all decision but requires careful analysis of specific application needs.

Key Factors in Determining the Optimal Air-to-Cloth Ratio

Choosing an appropriate air-to-cloth ratio depends on multiple variables that interact in complex ways. Engineers must account for these factors to achieve a balanced design:

1. Dust Properties: Particle size distribution, density, and stickiness. For example, fine or cohesive dusts often necessitate lower ratios to prevent blinding of filter media.

2. Filter Media Type: Different materials, such as polyester, fiberglass, or PTFE-coated fabrics, have varying permeability and durability, influencing the ideal ratio.

3. Operational Environment: Temperature, humidity, and chemical composition of the gas stream can affect dust behavior and filter performance, requiring ratio adjustments.

4. Cleaning System Design: The method of cleaning—like pulse-jet, reverse air, or mechanical shaking—interacts with the ratio. Pulse-jet systems, for instance, may tolerate higher ratios due to effective cleaning.

5. Airflow Variability: Systems with fluctuating airflow rates need ratios that accommodate peaks without compromising efficiency.

In practice, industry standards and empirical data guide selections. For baghouses in general industrial applications, ratios between 3:1 and 5:1 ft³/min/ft² are common, but specific cases may deviate based on the factors above.

Best Practices for Optimizing Air-to-Cloth Ratio in Dust Collection Systems

To harness the benefits of an optimal air-to-cloth ratio, follow these practical steps during design, installation, and maintenance:

• Conduct Thorough Airflow Analysis: Accurately measure or calculate the volumetric airflow rate, considering potential future expansions or process changes. This prevents undersizing that leads to high ratios.

• Select High-Quality Filter Media: Choose media tailored to dust characteristics and operational conditions. Advanced materials can sometimes allow for slightly higher ratios without sacrificing performance.

• Implement Monitoring Systems: Use sensors to track pressure drop and emissions in real-time. This data helps identify when ratios drift from optimal levels, enabling proactive adjustments.

• Schedule Regular Maintenance: Inspect and clean filter bags as needed to maintain consistent performance. Clogged or damaged bags can alter the effective ratio, reducing efficiency.

• Consult with Experts: Engage with experienced providers for customized solutions. For instance, Zhengzhou Puhua Technology offers expertise in designing dust removal equipment, including bag filters and pulse dust collectors, with careful consideration of parameters like the air-to-cloth ratio. Their approach integrates practical insights to ensure systems meet performance goals while minimizing costs.

By adhering to these practices, plants can extend equipment life, reduce energy use, and comply with environmental regulations. The role of precise engineering cannot be overstated, as even small improvements in ratio selection can yield significant operational benefits.

Conclusion

The air-to-cloth ratio is a cornerstone parameter in dust collector design, profoundly influencing filtration efficiency, operational costs, and system longevity. A deep understanding of this concept enables industries to optimize their dust control strategies, leading to cleaner air and enhanced productivity. Whether upgrading an existing system or implementing a new one, prioritizing the air-to-cloth ratio ensures that dust collectors perform reliably under varying conditions.

For those seeking specialized equipment, Zhengzhou Puhua Technology provides a range of environmental protection devices, including bag dust collectors, RCO catalytic combustion equipment, RTO devices, VOCs treatment systems, desulfurization towers, denitrification equipment, and wastewater treatment plants. Their focus on critical design aspects like the air-to-cloth ratio underscores a commitment to delivering effective and durable solutions for industrial applications.
